I. Introduction

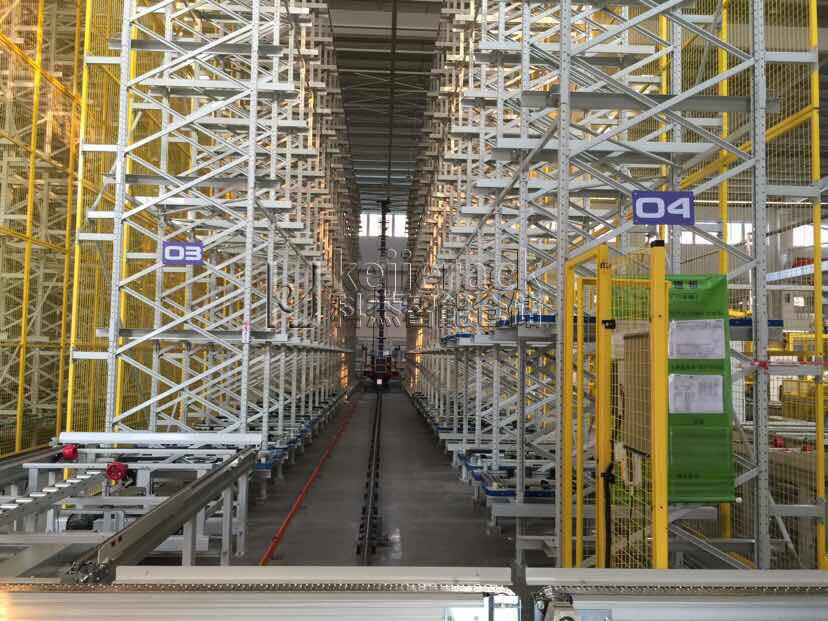

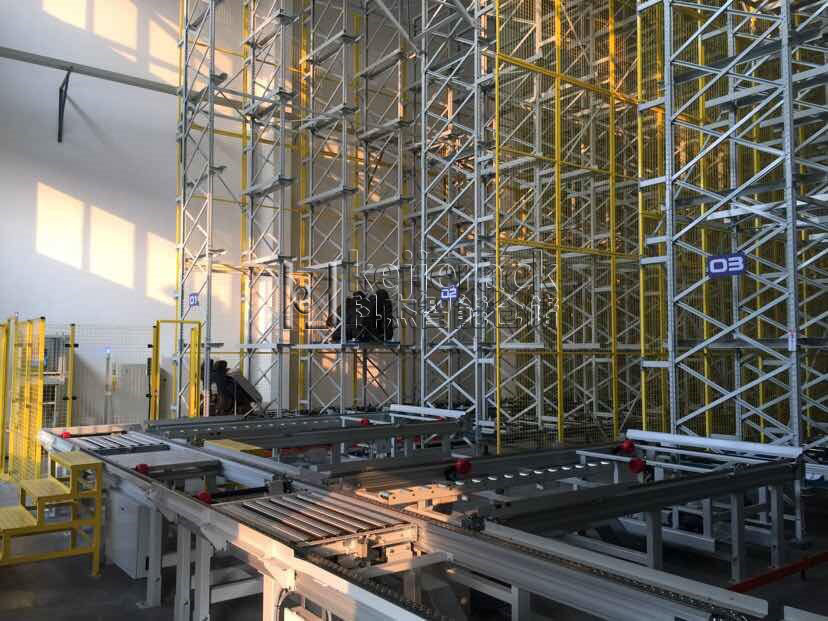

Stacker is one of the most important goods access equipment in automated warehouse. The lifting weight of the stacker is generally less than 4 tons, and the height of the stacker is generally between 10 and 40 meters.
According to the structure, it can be divided into single/double pillar stacker. According to the trajectory, it can be divided into straight, turning and turnout. It mainly consists of frame, walking mechanism, lifting mechanism, loading platform, fork, safety protection device and electrical equipment.
II. Product Characteristics
The stacker is equipped with anti-swing device, which is more accurate in positioning; high-strength steel is used to reduce the weight of the stacker to a minimum and save energy; the stacker runs at a speed of 300 meters/minute, with higher efficiency.
III. Product Specifications and Technical Parameters
| Serial number | Name | Specifications and parameters |
| 1 | Rated lifting weight (kg) | 500-4000 |
| 2 | Horizontal running speed (m/min) | 4-300 |
| 3 | Vertical lift speed (m/min) | 4-85 |
| 4 | Fork shrinkage speed (m/min) | 4-60 |
| 5 | Positioning accuracy (mm) | Horizontal H + 3; Vertical V + 3; Fork F + 3 |
| 6 | Acceleration (m/s2) | Horizontal: H1; Vertical: V1.3; Fork: F0.4 |
| 7 | Power collection mode | Sliding contact/contactless power supply |
| 8 | Operation mode | Straight/Turn/Turnout |
